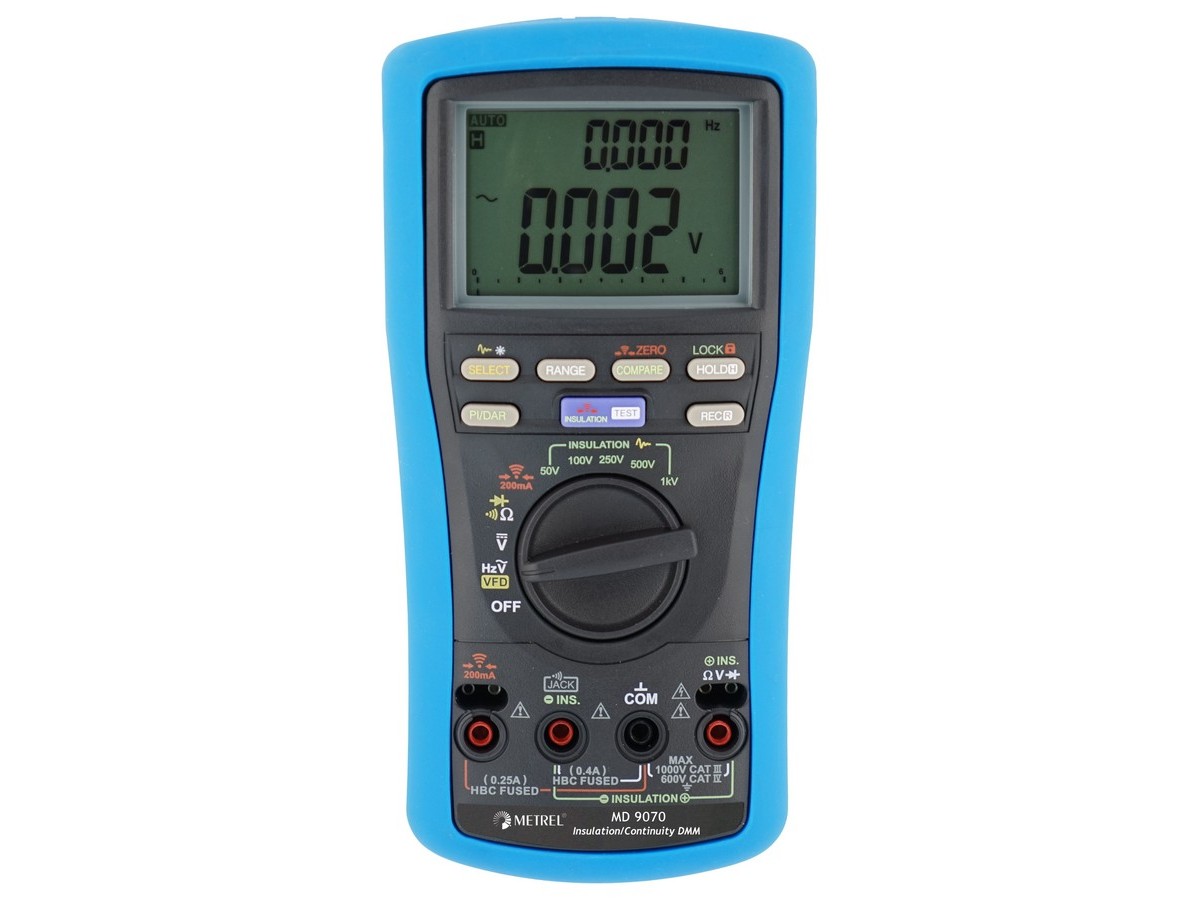

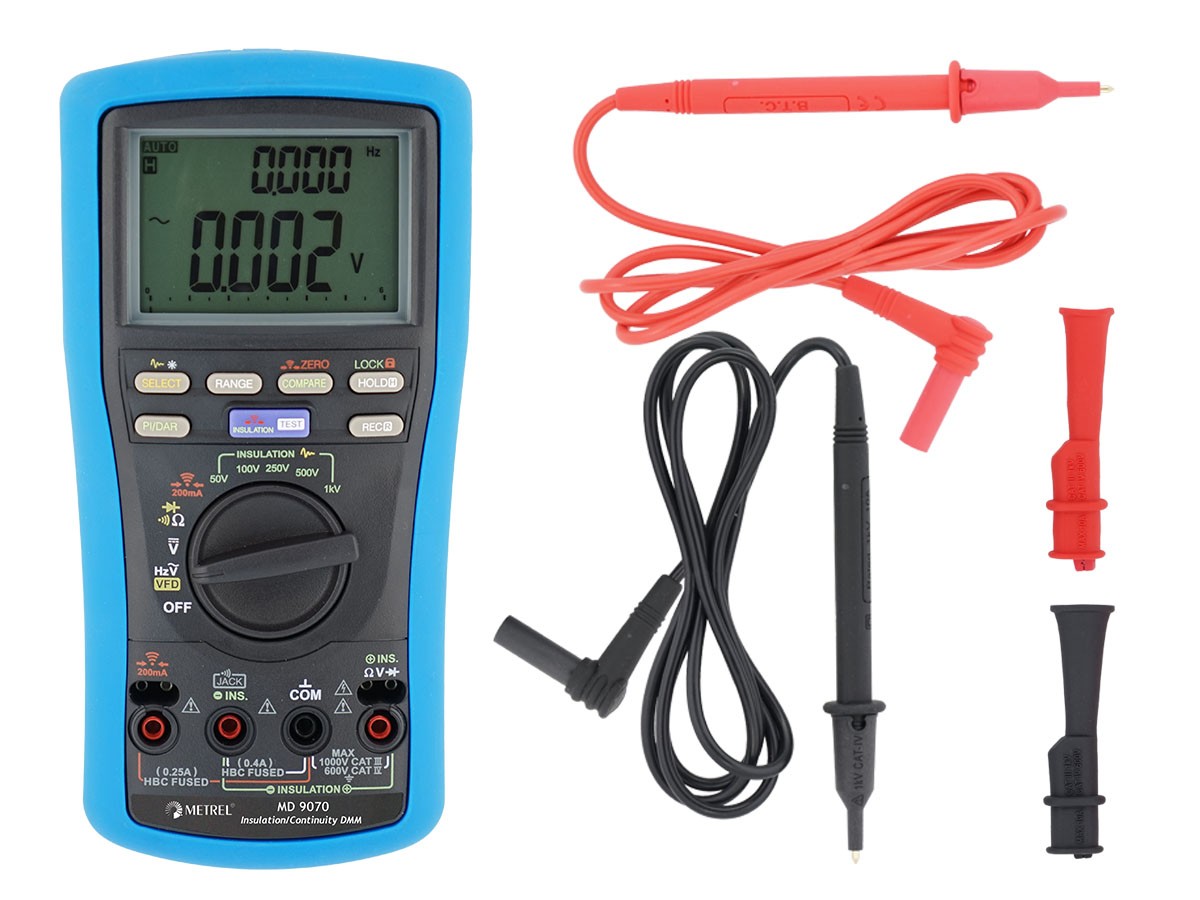

MD 9070 Insulation / Continuity Digital Multimeter

The MD 9070 is a high accuracy insulation and continuity multimeter which may be used in a CAT IV / 600 V environment. It’s dual digital display provides all needed data to the operator while it’s size ensures that it can be operated single handedly. The instrument is equipped with a built-in VFD feature that makes the instrument capable of measuring true RMS values in accordance with frequency, performing PI/DAR measurements and diode test. The MD 9070 has a wide range of extra features, including data hold, memory, min / max, differential, auto power off, auto-ranging, frequency filter, lock feature, reset, relative function and more.

Download Datasheet

SKU: md9070 Category:


Measuring functions

  • TRMS measurement;
  • Insulation resistance measurement;
  • Earth continuity measurement;
  • Resistance measurement;
  • Diode test;
  • Mains supply frequency measurement;
  • Frequency of digital signals measurement.

Key features

  • TRMS: accurate readings on sinusoidal and non-sinusoidal signals.
  • VFD: feature makes the instrument capable of measuring the true values in accordance with frequency.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • MAX/MIN: recording of maximum, minimum and average values.
  • Data Hold: data hold feature freezes the display for later view.
  • PI/DAR: feature.
  • Safety: CAT IV / 600 V and CAT III / 1000 V overvoltage protection.
  • Backlight: working in dark conditions.

Additional information

Dimensions 1 cm
