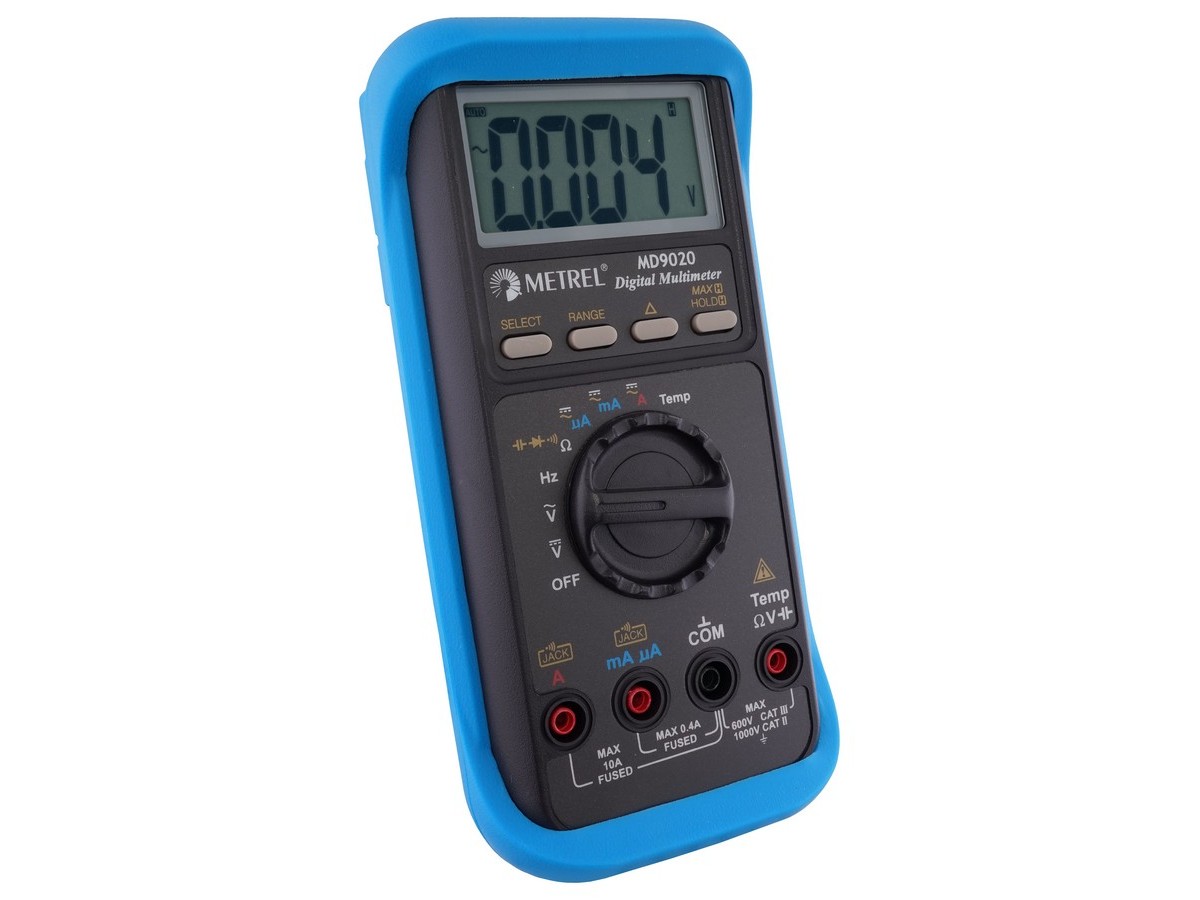

MD 9020 General Purpose Digital Multimeter

The MD 9020 is a high-quality digital multimeter, designed for everyday use in the laboratory and for maintenance and repair work in the field and in the industrial sector as well.

Download Datasheet

SKU: md9020 Category:


Measuring functions

  • AC, DC voltage measurement;
  • AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diod test;
  • Frequency measurement;
  • Continuity test (acoustic signalling);
  • Temperature measurement.

Key features

  • Temperature measurement: measures temperature in Celsius up to 300 °C and in Fahrenheit up to 572 °F.
  • Frequency measurement: up to 1 MHz.
  • Lead alert: incorrect lead connection alert.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • Data Hold: data hold feature freezes the display for later view.
  • MAX Hold: MAX hold feature freezes the maximum measured value.
  • Safe: CAT IV / 300 V, CAT III / 600 V and CAT II / 1000 V overvoltage protection.

Additional information

Dimensions 1 cm
